Ansamblu motor - reductor cu frana si encoder - Lenze 0.18kW

650,00 EUR (fara TVA)
786,50 EUR (TVA inclus)
Costurile de livrare nu sunt incluse
Comenzi telefonice - 02125242320212524232
Cod produs - SKU: 0824K893
Rated motor power [kW]: 0.18
Status: New

Descriere

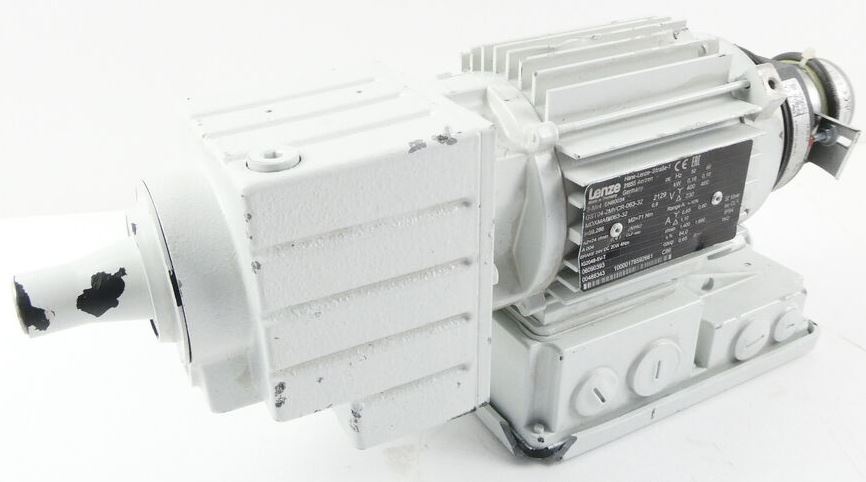

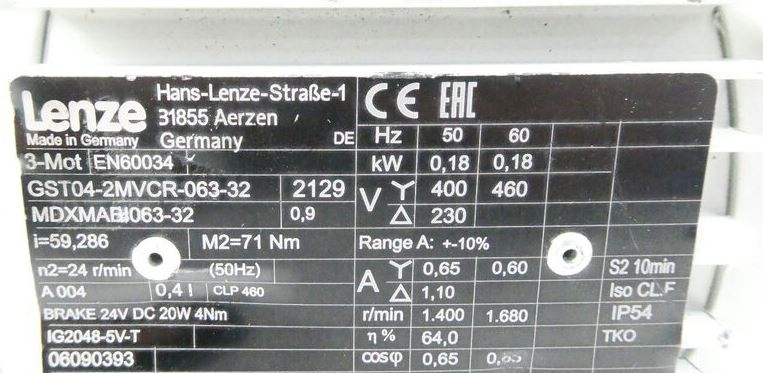

Lenze GST04-2MVCR-063-32 / BFK458-06N compus din:

Asynchronous 3-phase motor:

Mominal motor power: 0.18kW
Nominal voltage: 3x 230V / 400Vac 50Hz or 3x 460Vac 60Hz

Nominal current: 1.1 / 0.65A at 50Hz, 0.6A at 60Hz

Nominal speed: 1400rpm at 50Hz, 1680rpm at 60Hz

Gear ratio: 59.286

Gear output torque: 72Nm

Gear output speed: 24 rpm (at 50Hz)

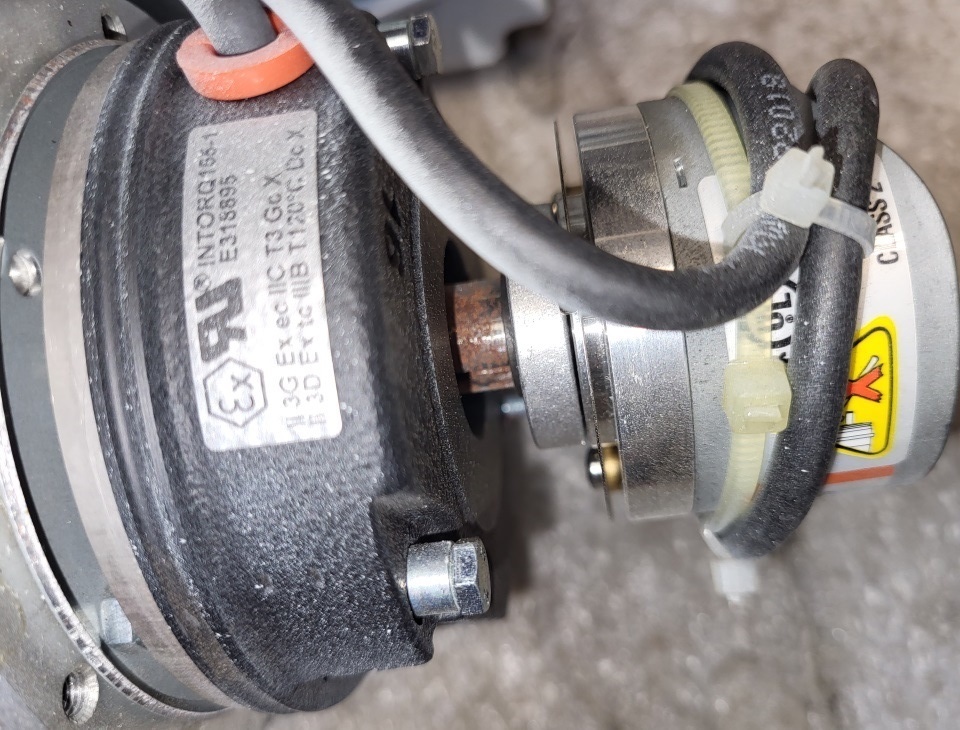

Brake on motor shaft: 24Vdc, 20W, 4Nm

Encoder included

Warranty: 1 year
