Convertizor de frecventa (VFD) Danfoss VLT 6003HT, 1.5kW

Descriere

VFD for three phase induction motor

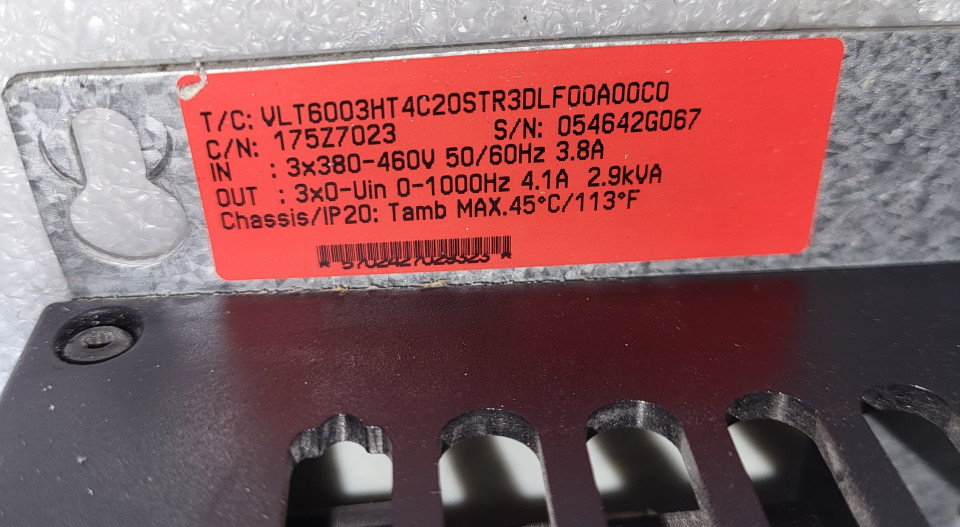

Model: Danfoss VLT6003HT4C20STR3DLF00A00C0

P/N: 175Z7023

Motor rated power: 1.5kW

Output aparent power: 2.9kVA

Input voltage: 3x 380 - 460V / 50 - 60Hz

Input current: 3.8A

Output voltage: 0 – Input voltage

Rated output current: 4.1A (at 380V input)

Output frequency: 0 - 1000Hz

Local terminal control

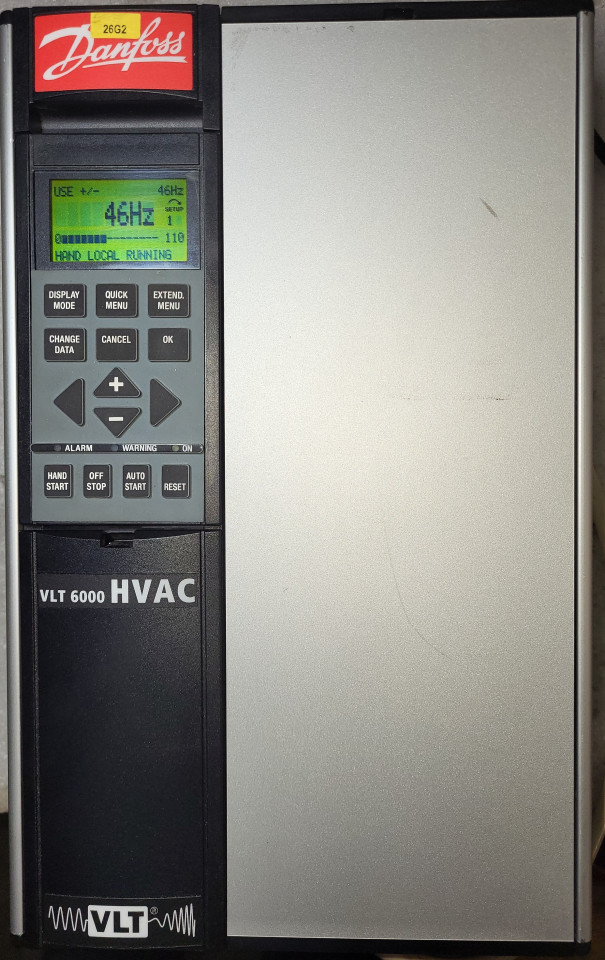

Display and control panel (LCP included)

Chassis IP20

Tamb max: 45ºC

Warranty: 1 year
