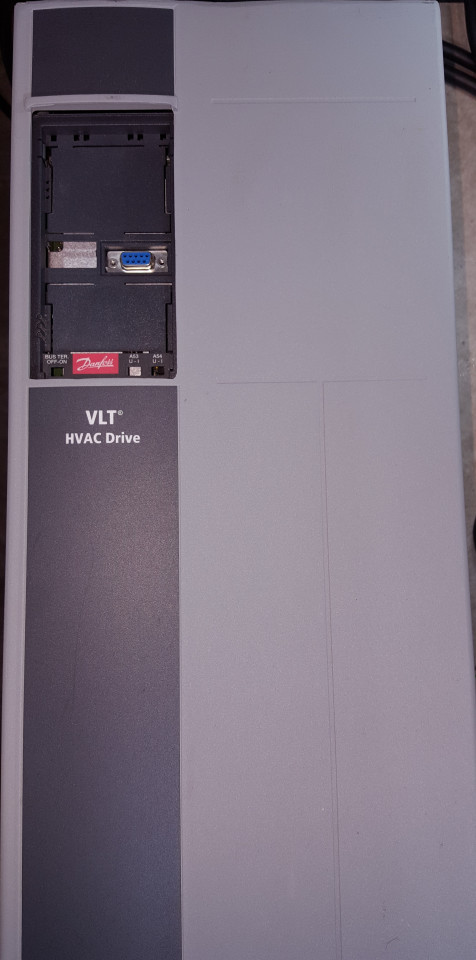

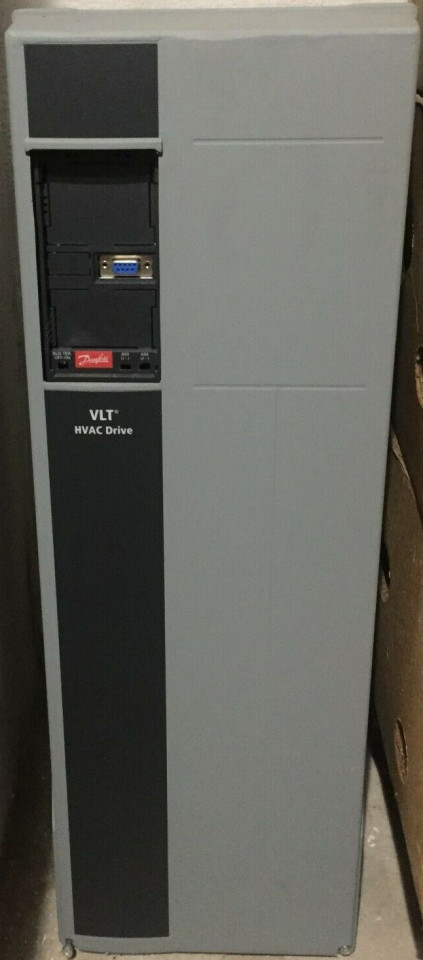

Danfoss HVAC - 30kW, FC-102P30

Descriere

VFD for three phase induction motor

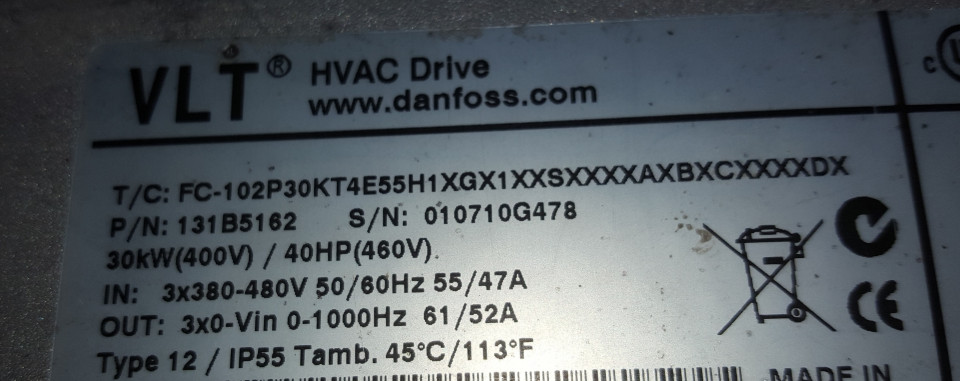

Model: Danfoss HVAC - 30kW, FC-102P30KT4E55H1

P/N: 131B5162

Maximum motor power: 30kW (@400V)

Input voltage: 3x 380 - 480V / 50 - 60Hz

Input current: 55 / 47A

Output voltage: 0 – Input voltage

Rated output current: 61 / 52A

Output frequency: 0 - 1000Hz

Local terminal control

Option for display and control panel

USB port and RS485

Warranty: 1 year
