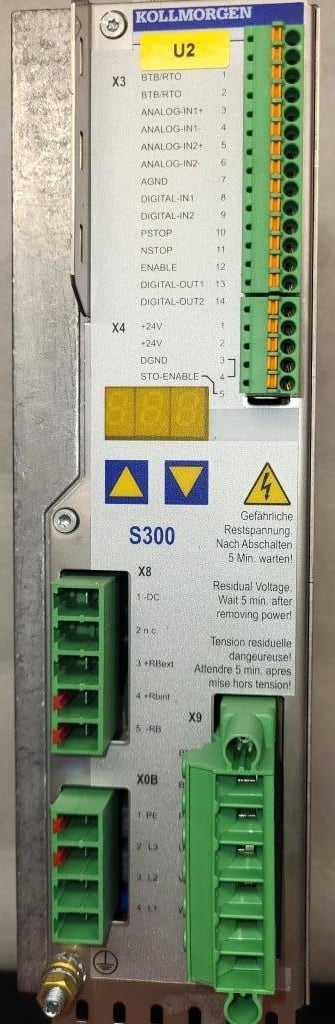

Servodrive Kollmorgen Servostar 346

Descriere

Drive for brushless servomotor

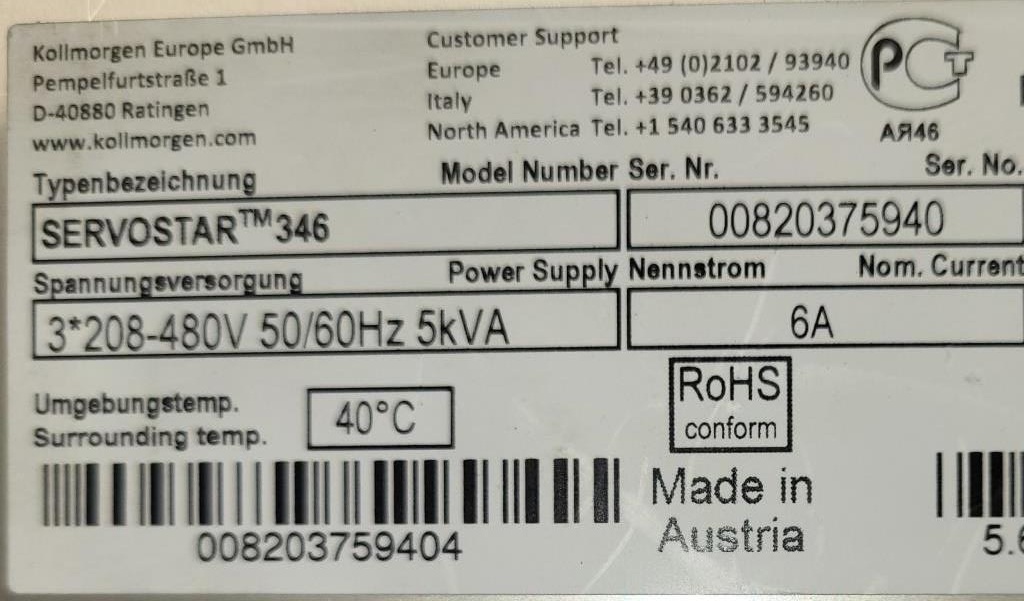

Model: Kollmorgen Servostar 346, S30601
Input voltage: 3x 208 - 480Vac

Nominal current: 6A

Peak current: 12A

RS232 communication interface:

          Status display, user parameter setting, monitoring display, alarm tracking display, JOG operation and automatic

          tuning operation, speed, torque instruction signal

CANopen interface

Feedback: resolver and encoder

EtherCAT card - as option (+90Euro)

4 programmable digital inputs

2 programmable digital outputs

2 analog inputs

Instruction synchronization cycle: 1ms or its integral multiple

Drive profile DS402

Speed Torque control

Position control mode:

Warranty: 1 year
