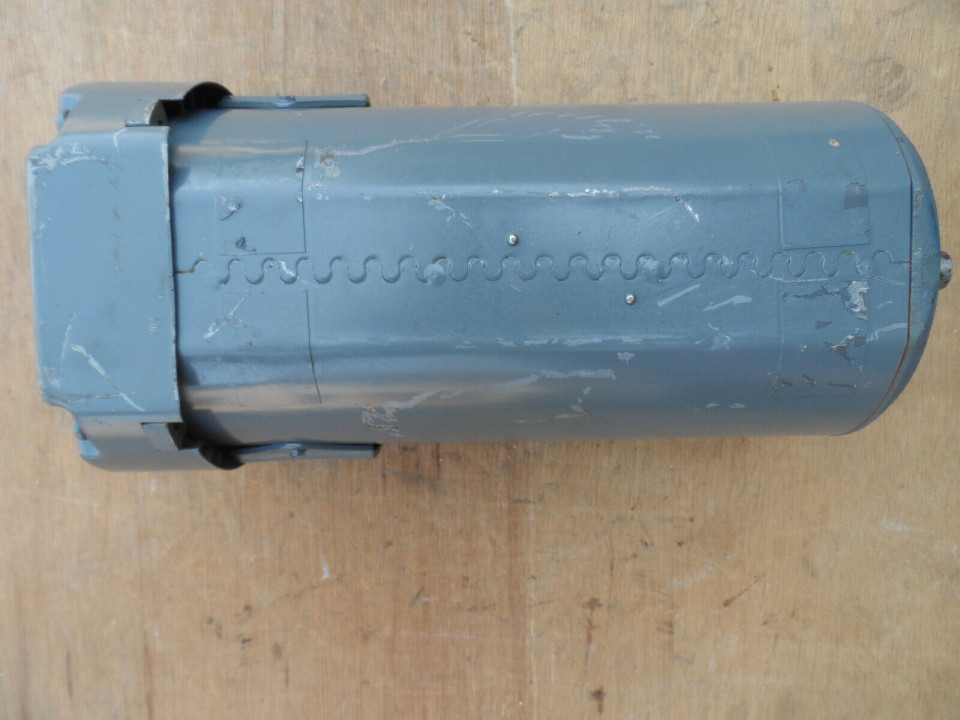

General Electric DC motor 1.47kW

Description

Brushed DC Motor

Model: General Electric 5CD124TE001B
Mominal motor power: 1.47kW (2HP)
Nominal armature voltage: 180Vdc

Nominal armature current: 9.8A

Nominal speed: 1750 / 2050rpm

Field type: separate, configurable:

 - series field winding connection: 200V voltage, 0.7 / 0.4A current; 210ohms resistance at 25ºC

 - parallel field winding connection: 100V voltage, 1.4 / 0.8A current; 53ohms resistance at 25ºC

DUTY: continous

Warranty: 1 year
