Convertizor de frecventa / VFD SINEE EM760 5.5kW

Descriere

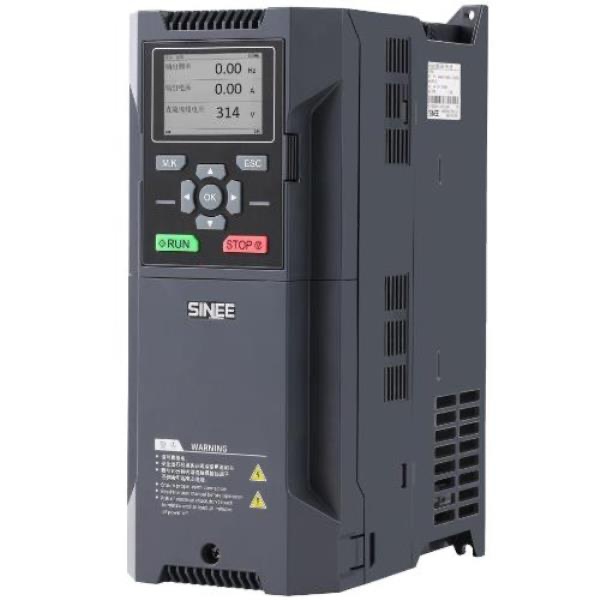

VFD for three phase induction motor

Model: SINEE EM760-5R5G/7R5P-3BS
Nominal motor power: 5.5kW
Input voltage: 3x 340 - 460V, 50-60Hz

Output voltage: 0 – Input voltage
Output frequency: 0 – 600Hz / 0 - 3000Hz

Output current: 25A
Terminals and LCP for control

Motor control:

     V/F control (VVF), speed range 1:50

     Speed sensorless vector control (SVC), speed range 1:200

     Speed sensor vector control (FVC), speed range 1:1000

Input frequency resolution: Digital input: 0.01Hz; Analog input: 0.1% of maximum frequency

Torque control accuracy: ±5% rated torque (SVC), ±3% rated torque (FVC)

Warranty: 1 year
